Quick Start Guide

Quick Start

Tx Submit API Mirror is a simple Cardano transaction submission API service which mirrors all incoming requests asynchronously to configured backend submission API services.

A simple HTTP API which accepts a CBOR encoded Cardano transaction as a payload body and submits it to one or more configured backend transaction submission API services.

Simply download the Tx Submit API Mirror binary file from blinklabs.io on to your node server. Configuration can be done using a config file or setting environment variables.

To get started follow the steps below

⚠️ This guide assumes typical Linux Cardano Node setup. Please adjust commands and paths as needed.

💡 Tip: Don’t have a Cardano Node yet? Try cardano-up

Step 1 - Download binary from Blinklabs

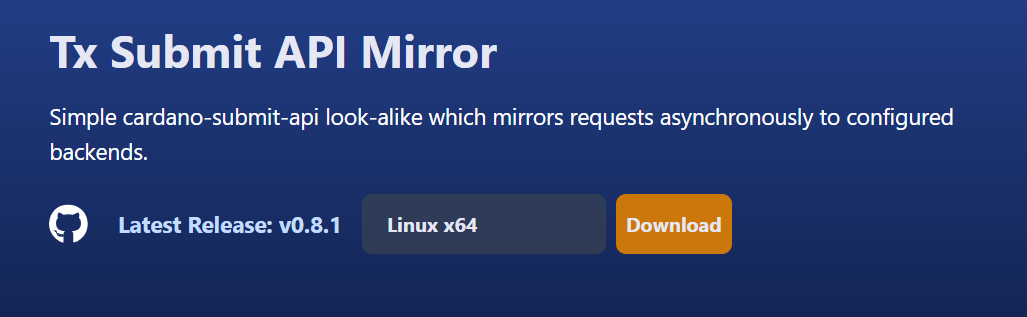

Step 1-A - First start by going to https://blinklabs.io/projects-open-source and scroll down to Tx Submit API Mirror.

txsubmit-mirror-blinklabs-site

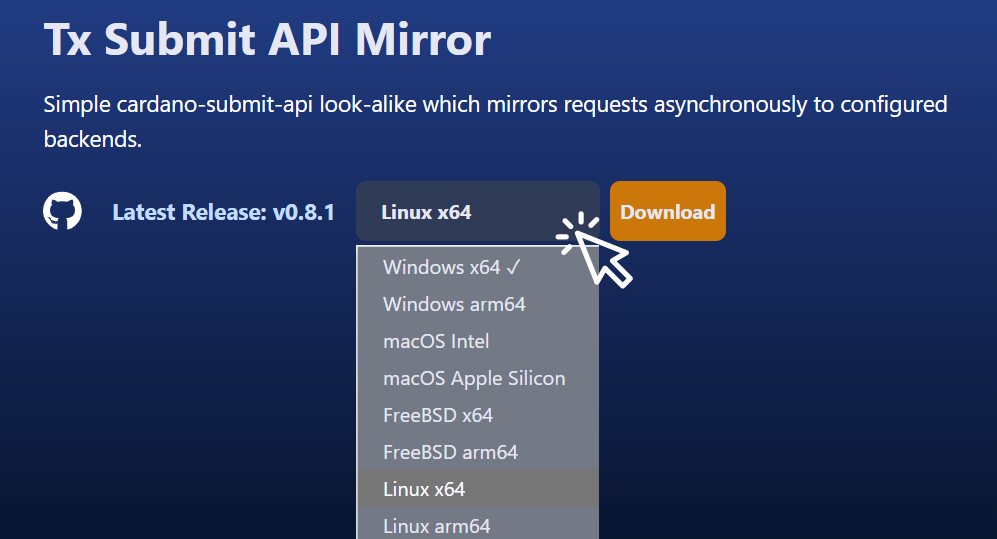

Step 1-B - Select the operating system of your node server.

txsubmit-mirror-blinklabs-site-operating-system

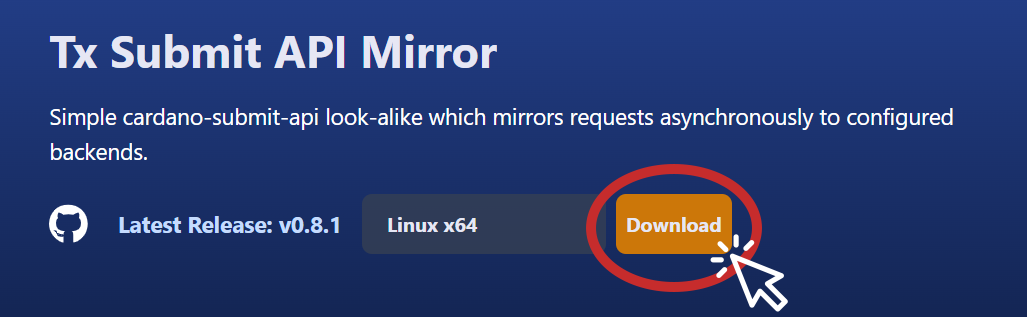

Step 1-C - You can either download the binary file and move the file to your node server or…

txsubmit-mirror-blinklabs-site-download

Copy the path from Blinklabs and run the following command to download the binary file on your node server

⚠️ Adjust the link path to the correct path for the version you want to download.

💡 Tip: You can download the latest Tx Submit API Mirror release from the https://github.com/blinklabs-io/tx-submit-api-mirror/releases page.

wget -O - https://github.com/blinklabs-io/tx-submit-api-mirror/releases/download/v0.8.1/tx-submit-api-mirror-v0.8.1-linux-amd64 > tx-submit-api-mirror

Step 2 - Change Permissions

For this example, we named the binary file tx-submit-api-mirror and saved the file to our $NODE_HOME folder. To make the file executable run the following command:

⚠️ Adjust the file path and file name if needed.

chmod +x $NODE_HOME/tx-submit-api-mirror

Step 3 - Open Firewall to your Selected Port

Make sure your firewall is open on the port you selected. For this example, we used port 8090. To open the port on 8090 we run the following command:

sudo ufw allow 8090/tcp

Step 4 - Setup Config File

Sample config.yaml:

node:
  network: mainnet
  port: 8090
  socketPath: /home/user/cardano-my-node/db/socket
  backends: http://tx1, http://tx2, http://tx3

✅ BACKENDS is a comma separated list of HTTP Cardano transaction submission service API URIs

💡 Tip: To find the path to your node socket run the following command:

echo $CARDANO_NODE_SOCKET_PATH

More information on configuration file or Environment variables can be found here: https://github.com/blinklabs-io/tx-submit-api-mirror

Step 5 - Run Tx Submit Mirror API With Config File

Run the executable file by running the following with the command line flag -config to set the file to load as a configuration.

⚠️ Adjust the file path below to match your path to the config.yaml file.

cd $NODE_HOME
./tx-submit-api-mirror -config /path/to/config.yaml

💡 Tip: You can hit control+z and then type bg to run in the background. Hit fg to bring back to the foreground

💡 Tip: You can check that Tx Submit Mirror API is running by using the following command. Please adjust port if needed.

curl http://localhost:8090/healthcheck

Congratulations you are ready to start submitting transactions with Tx Submit Mirror API!

Step 6 - Submit Transactions to your Tx Submit Mirror URL

Submit transactions to your Tx Submit Mirror API URL. It should look like http://192.0.2.0:8090/api/submit/tx ⚠️ Adjust to your IP and Port as need.

This implementation shares an API spec with IOHK’s Haskell implementation. The same instructions apply. Follow the steps to build and submit a transaction
